Viscosity Bath Manufacturer in Mumbai - Technosearch Instruments
Technosearch Instruments, based in Mumbai, India, is a trusted manufacturer of viscosity baths for over a decade. Our precision-engineered digital viscosity baths are designed to deliver accurate and stable temperature control for viscosity measurements in pharmaceutical, petrochemical, chemical, food, and R&D laboratories.
Each viscosity bath is built with double-wall construction, stainless steel inner chamber, toughened glass windows, motorized circulator, and microprocessor-based PID temperature controller to ensure long-term durability and precise performance.

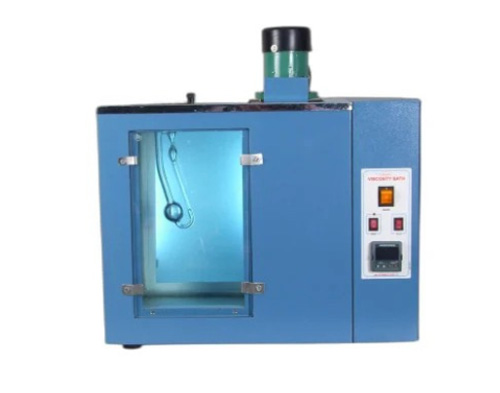

Digital Viscosity Bath (TSI-VSB 01) - 4 Viscometers, 20L Capacity :
This compact rectangular viscosity bath is ideal for accurate viscosity testing.
» Double wall insulated chamber with SS inner chamber and epoxy-coated MS outer body
» Front & back toughened glass windows with rear illumination for easy viewing
» Openings for 4 viscometer tubes with holders
» Microprocessor PID controller with PT-100 sensor for ± 0.1°C accuracy
» Motorized stirrer for uniform temperature control
Technical Specifications :
» Temperature Range : 5°C above ambient to 110°C (depending on medium)
» Operating Temp. : 40°C – 100°C
» Resolution : 0.1°C
» Accuracy : ±0.1°C
» Tank Dimensions : 355 × 200 × 290 mm (W × B × D)
» Capacity : 20 Litres
» Power Supply : 230V AC, 50 Hz
Note : Viscometer tubes to be arranged by user. For 40°C operation, medium is water. For temperatures above 95°C, alternate medium required.
Advanced Digital Viscosity Bath (TSI-VSB 02 / TSI-VSB 03) - 4 / 6 Viscometers, 25L Capacity :
A high-precision viscosity bath with enhanced temperature stability, suitable for advanced testing applications.
» Double wall insulated rectangular model with SS inner chamber
» Front & rear toughened glass windows with illumination
» Openings for 4 or 6 viscometer tubes with holders
» Low water level protection sensor for heater safety
» Microprocessor-based PID controller with ultra-fine resolution
Technical Specifications :
» Operating Temp. : 40.00°C to 99.99°C (0.01°C resolution), 100.0°C to 110.0°C (0.1°C resolution)
» Stability : ±0.02°C
» Sensor : PT-100
» Motorized Circulator for uniform heating
» Tank Dimensions : 450 × 200 × 290 mm (W × B × D)
» Working Chamber : 310 × 200 × 290 mm (W × B × D)
» Bath Volume : 25 Litres
» Heater Rating : 2.5 kW
» Power Supply : 230V AC, 50 Hz
Models Available :
» TSI-VSB 02 - 4 Viscometer Holders
» TTSI-VSB 03 - 6 Viscometer Holders
Applications of Technosearch Viscosity Baths :
» Pharmaceutical Industry - viscosity determination of syrups, suspensions, and formulations
» Petrochemical Industry - testing oils, lubricants, fuels, and polymers
» Food & Beverage Industry - viscosity analysis of edible oils, sauces, beverages, and dairy products
» Chemical & Research Laboratories - academic and industrial R&D for fluid behavior studies
