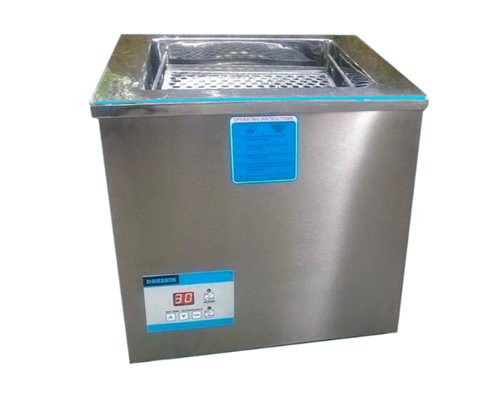

Ultrasonic Bath Sonicator with Heater - Technosearch Instruments, Mumbai
Technosearch Instruments, a trusted manufacturer of laboratory equipment in Mumbai, offers high-performance Ultrasonic Bath Sonicators with Heater designed for efficient and reliable cleaning. Our ultrasonic cleaners are widely used in biotechnology labs, pharmaceutical industries, research institutions, hospitals, electronics, and material testing laboratories for precision cleaning, degassing, and sonication applications.
Key Features of Ultrasonic Bath Sonicator :
» Switch Mode Technology with advanced MOSFET base circuitry.
» Automatic frequency tuning ensures maximum ultrasonic cleaning efficiency.
» Low transducer losses for powerful cleaning action.
» Safety protection against short circuit, over-voltage, and over-temperature.
» Microcontroller-based digital timer with buzzer alert.
» Compact and lightweight design, energy-efficient operation.
» Rugged stainless steel SS-304 housing for durability and easy maintenance.
» Splash-proof keypad with ON/OFF key.
» Temperature control up to 45°C ± 2°C.
» Accessories included : Stainless steel basket & SS lid.
Technical Specifications :
» Power Supply : 230V AC, 50Hz
» Ultrasonic Frequency : 33 KHz ± 3 KHz
» Timer Display : Two-digit LED display
» Timer Range : 1 min - 60 mins
» Tank Material : SS-304 grade
» Outer Body : SS-304 grade
» Drain Valve : ½ inch ball valve
» Temperature Control : Fixed max. 45°C ± 2°C
Ultrasonic Bath Sonicator Models :
DTC Series (Deep Tank Capacity)
Model |
Tank Capacity |
Tank Size (L x W x H) (inch) |
Ultrasonic Power |
TSI-70SB |
7.5 Ltrs |
10" x 8" x 6" |
150 W |
TSI-100SB |
10 Ltrs |
12" x 9" x 6" |
250 W |
TSI-150SB |
15 Ltrs |
15" x 11" x 6" |
350 W |
TSI-200SB |
20 Ltrs |
14" x 12" x 8" |
400 W |
TSI-500SB |
47 Ltrs |
20" x 12" x 12" |
600 W |
TSI-1000SB |
100 Ltrs |
24" x 16" x 16" |
1000 W |
TSI-2000SB |
200 Ltrs |
36" x 20" x 18" |
2000 W |
SDT Series (Standard Depth Tank) :
Model |
Inner Size (mm) |
Outer Size (mm) |
Ultrasonic Power |
TSI-1.5 L |
240 x 140 x 65 |
255 x 155 x 225 |
50 W |
TSI-2.25 L |
235 x 135 x 100 |
255 x 155 x 255 |
70 W |
TSI-3.5 L |
300 x 150 x 100 |
315 x 165 x 270 |
100 W |
TSI-5.5 L |
250 x 150 x 150 |
350 x 250 x 385 |
150 W |
TSI-6.5 L |
300 x 150 x 150 |
400 x 250 x 385 |
200 W |
TSI-8 L |
300 x 180 x 150 |
400 x 280 x 385 |
200 W |
TSI-9 L |
300 x 200 x 150 |
400 x 300 x 385 |
250 W |
TSI-10 L |
300 x 230 x 150 |
400 x 330 x 385 |
250 W |
TSI-13 L |
300 x 300 x 150 |
400 x 400 x 385 |
300 W |
TSI-15 L |
350 x 300 x 150 |
450 x 400 x 385 |
300 W |
TSI-21 L |
350 x 300 x 200 |
450 x 400 x 435 |
400 W |
TSI-24 L |
400 x 400 x 150 |
500 x 500 x 385 |
400 W |
TSI-25 L |
400 x 400 x 150 |
500 x 500 x 385 |
500 W |
TSI-40 L |
500 x 400 x 200 |
600 x 520 x 470 |
500 W |
TSI-50 L |
500 x 500 x 200 |
600 x 500 x 435 |
500 W |
Applications of Ultrasonic Bath Sonicator :
» Laboratory cleaning of glassware, pipettes, and precision instruments.
» Pharmaceutical and biotech industries for degassing and homogenization.
» Electronics industry for PCBs, connectors, and semiconductor cleaning.
» Healthcare & hospitals for surgical instruments and medical devices.
» Research & material testing for dispersion and emulsification.
