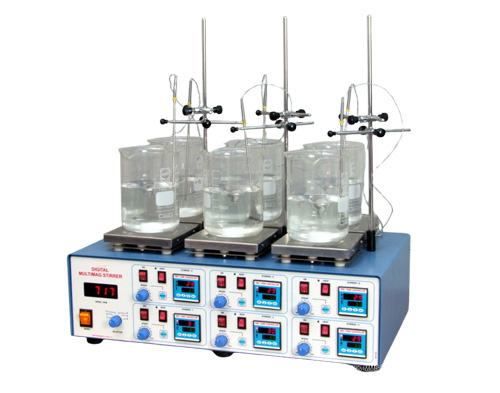

Multi-Magnetic Stirrer with Hot Plate Manufacturer in Mumbai – Technosearch Instruments
Technosearch Instruments, based in Mumbai, India, is a leading manufacturer of Multi-Magnetic Stirrers with Hot Plate and Digital Temperature Controller, with over a decade of experience in laboratory equipment manufacturing. Our Digital Multi-Magnetic Stirrer is designed for efficient, precise, and reliable stirring and heating in research, pharmaceutical, chemical, and academic laboratories.
Engineered with epoxy-coated body, SS-316 hot plates, and advanced digital PID temperature controllers, the instrument ensures accuracy, durability, and long service life. Each stage is individually controlled with stepless RPM adjustment and separate PID temperature regulation, making it a versatile solution for multi-sample experiments.
Key Features & Advantages :
» Multi-Stage Operation - Available in 4-stage (2×2) and 6-stage (2×3)configurations for vessels of 500 ml to 2000 ml capacity.
» Soft Start & Easy Restart - Gradual RPM increase prevents Teflon stir bar slippage and splashes; restart feature recenters stir bar without disturbing RPM settings.
» Individual Speed Control - Each stirrer has its own stepless speed regulator (200–1000 RPM).
» Digital PID Temperature Control - Precise heating with dual display (set & process temp.) and PT-100 sensors for each hot plate.
» Durable Hot Plates - Made of SS 316 stainless steel for corrosion resistance and long-term reliability.
» Digital Speed Display - Single RPM display with selector switch to monitor speed of each stirrer.
» Programmable Heating - Temperature adjustable up to 200°C.
» Independent On/Off Switches - For easy operation of each stage.
» Supplied with Teflon Magnetic Stir Bars - For smooth, efficient stirring
Technical Specifications – Digital Multi-Magnetic Stirrer :
» Capacity : 500 ml - 2000 ml (each stage)
» Hot Plate Material : SS 316 stainless steel
» RPM Range : 200 - 1000 RPM (stepless variable)
» Temperature Range : up to 200°C
» Speed Indicator : Single digital display with 6-way selector switch
» Temperature Control : Individual PID digital controllers with dual display & PT-100 sensors (6 nos.)
» Power Supply : 230V AC, 50 Hz
» Models :
* 4 Stage (2×2) – for 500 ml to 2000 ml (PN: TSI-MMH 01)
* 6 Stage (2×3) – for 500 ml to 2000 ml (PN: TSI-MMH 02)
