Technosearch is a leading manufacturer of TSI Diffusion Cell Apparatus with Bath in Mumbai, delivering high-quality instruments trusted by pharmaceutical, biotech, and research laboratories for more than a decade. Our diffusion cell apparatus is engineered with precision to provide accurate drug release and permeation studies, essential for modern pharmaceutical development.
About TSI Diffusion Cell Apparatus :

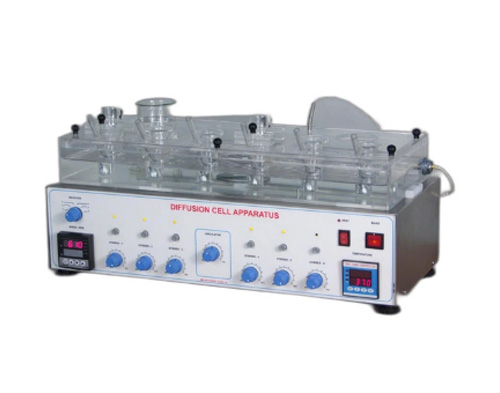

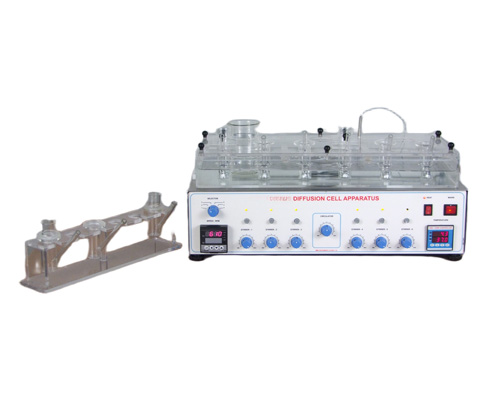

The Diffusion Cell Apparatus is designed with a Perspex bath and stainless steel top, supported by a digital PID temperature controller for precise thermal regulation. It accommodates six diffusion cell vessels (20 ml capacity each), ensuring reliable and uniform testing conditions.
Each vessel is equipped with an individual magnetic stirrer featuring electronic speed control, On/Off switches, and digital speed indicators. A built-in circulator maintains temperature uniformity across the bath, while PT-100 sensors ensure high accuracy.
Key Features of Technosearch Diffusion Cell Apparatus :
» Robust mild steel body with epoxy coating and stainless steel top
» Perspex bath with heater for diffusion studies
» Digital PID Temperature Control with PT-100 sensor for accuracy
» Uniform bath temperature maintained by built-in circulator
» Six diffusion cell vessels (20 ml each) included
» Individual stirrer speed control (300 – 1000 RPM)
» Digital LED display for temperature and stirrer speed
» Supplied with Teflon-coated magnetic bits (5 mm × 10 mm) & 6 glass diffusion cells
Technical Specifications :
Parameter |
Specification |
Capacity |
6 vessels × 20 ml each |
Temperature Range |
Ambient + to 40.0°C |
Temperature Control |
Digital PID Controller with PT-100 sensor |
Bath Material |
Perspex sheet |
Stirrer Speed |
300 – 1000 RPM (individual control) |
Display |
Digital Red LED for Temp & Speed |
Heater Rating |
250 W approx., Stainless Steel |
Power Supply |
230V ±10% AC, 50 Hz |
Spare |
Non-jacketed 20 ml Glass Diffusion Cells |
Applications :
» Pharmaceutical research and development
» Drug release studies
» Permeation testing in formulations
» Biotechnology laboratories
» Academic research institutions
